价格:￥5000.00/台
品牌:NBET
起订:1台
供应:100台
发货:3天内

立即购买

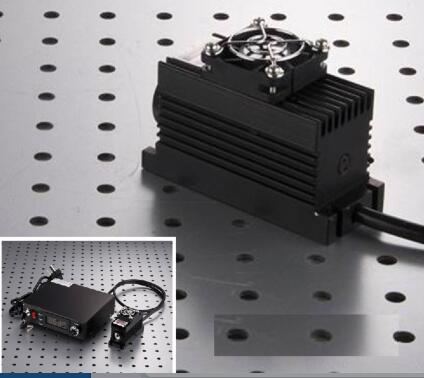

1064nm拉曼激光器

---

 1064nm拉曼激光器

NBET-III-1064/250~1000mW

SINGLE LonGITUDINAL MODE INFRARED LASER AT 1064nm

All solid state single longitudinal mode infrared laser at 1064nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.



技术参数

Wavelength (nm) 1064±1

Operating mode CW

Output power (mW) 250,300,400,…1000

Power stability (rms, over 4 hours) <1%, <3%, <5%

Transverse mode TEM00

Longitudinal mode Single

Spectral linewidth (nm) <0.00001

Coherent length (m) >50

Noise of amplitude (rms, 1Hz~20MHz) <1%typical0.5%

M2 factor <1.5

Beam diameter at the aperture (1/e2, mm) <2.0

Beam divergence, full angle (mrad) <1.5

Warm-up time (minutes) <10

Pointing stability after warm-up (mrad) <0.05

Beam height from base plate (mm) 24.8

Operating temperature (℃) 15~35

Power supply (90-264VAC) PSU-H-FDA

Expected lifetime (hours) 10000

Warranty 1 year



选型指南

NBET-FN-360nm	360nm半导体激光器，数显可调。
NBET -III-400/405/410/415nm	400nm半导体激光器，数显可调。
NBET-III-532nm	532nm半导体激光器，数显可调。
NBET-F-532nm	532nm半导体激光器，数显可调。
NBET-FN-532nm	532nm半导体激光器，数显可调。
NBET-D-785nm	785nm半导体激光器，数显可调。
NBET-III-1064nm	1064nm半导体激光器，数显可调。
